Why 1045 Chrome Plated Rod Is the Top Choice for Hydraulic Cylinders!

The world of industrial machinery thrives on reliability, efficiency, and durability. Within this realm, hydraulic cylinders serve as the backbone for countless types of equipment—driving construction machines, manufacturing lines, agricultural implements, mining vehicles, and even marine and transportation systems. When considering the components that govern the productivity and life expectancy of a hydraulic system, few elements are as critical as the piston rod. And among the spectrum of available materials, the 1045 Chrome Plated Rod has emerged as the industry’s preferred solution globally.

1. The Function and Critical Role of Hydraulic Cylinder Rods

Hydraulic cylinders power the motion in innumerable industries—from lifting and steering to pressing and excavating. Within every hydraulic cylinder, the piston rod translates hydraulic energy into linear mechanical movement.

Why the Piston Rod Matters

Piston rods carry heavy loads, undergo frequent cycles, and operate in varying—and often harsh—conditions.

Their main requirements are:

• Exceptional strength and straightness (to resist bending and buckling)
• Durable surface (to withstand friction, wear, and contaminants)
• Corrosion resistance (to fend off rust and pitting in wet or dirty environments)
• Consistent finish (to ensure seal integrity and prevent leaks)
• Precision tolerances (to fit perfectly within cylinder assemblies)

A failure at the rod leads to leaks, sticking motion, equipment downtime, and—in extreme cases—total system breakdown. This is why manufacturers and operators demand the best.

2. What Is a 1045 Chrome Plated Rod?

A 1045 Chrome Plated Rod is a high-quality carbon steel bar (specifically AISI 1045 or the equivalent C45/CK45 grade) that has been centerless ground, polished, and then finished with a thin, extremely hard layer of electrolytic chrome.

Key Features:

• 1045 Medium Carbon Steel Core: Offers excellent toughness, machinability, and cost-effectiveness.
• Induction or Through-Hardening: The core can be surface-hardened for extra strength if required.
• Chrome Plating (20–30 µm typical): Applied by electroplating, the chrome layer delivers surface hardness (up to HRC 60-70), high wear resistance, and a mirror-like finish with extremely low surface roughness.

This combination of a tough, medium-carbon alloy with an advanced surface treatment results in a rod custom-engineered for hydraulic cylinder environments.

3. Key Benefits of 1045 Chrome Plated Rods Compared to Others

Why is 1045 Chrome Plated Rod the global industry favorite?

a) Strength and Toughness

• 1045 steel provides a balanced microstructure—hard enough to resist bending with enough ductility to avoid brittle fracture.
• Resists shock and sudden force, ideal for heavy-duty industrial cylinders.

b) Surface Hardness

• The chrome layer raises surface hardness to 850–1150 HV.
• Outperforms plain steel rods and most alternate alloys—meaning longer wear life under seals and bushings.

c) Extreme Smoothness

• Post-plating polish yields Ra values of 0.2–0.4 µm or better.
• This limits friction, reduces heat generation, prevents seal cutting, and enables smooth, noise-free motion.

d) Corrosion Resistance

• The chrome coating is inherently oxidation- and corrosion-resistant.
• Prevents pitting and rust, even in outdoor, wet, or chemical-exposed environments.

e) Cost-Effectiveness

• 1045 is abundant and affordable compared to high-alloy or stainless alternatives.
• Chrome plating, though adding value, remains less expensive than solid stainless rods for most uses.

f) Versatility

• Easily sourced in a broad range of diameters (typically 6–200mm) and lengths (up to 8m or more).
• Satisfies most international hydraulic standard specifications.

4. Essential Properties for Hydraulic Cylinder Rods

Every piston rod in a hydraulic cylinder must meet key properties—1045 Chrome Plated Rod do so consistently:

a) Diameter Tolerance & Straightness

• Tightly controlled (e.g., f7 or h8 tolerance) for reliable, leak-free seal performance.
• Straightness deviation <0.2mm/m for long cylinder application.

b) Roundness

• Roundness, or deviation from a perfect circle, is minimal (<0.01 mm).
• Ensures uniform loading against cylinder seals.

c) Core and Surface Hardness

• Core typically ~HB 180–220 and surface chrome up to HRC 60+.
• Best for resisting both core deformation and surface abrasion.

d) Surface Finish

• Mirror-like surface (Ra ≤ 0.2–0.4 µm) for minimum wear.
• Chrome-plated rods outlast and outperform bare, painted, or nitride-coated alternatives.

e) Corrosion Resistance

• Chrome layer provides inherent rust inhibition and can be enhanced with trivalent chrome or nickel underlayers for even harsher environments.

5. The Manufacturing Process: From Raw Steel to Finished Rod

The quality of a 1045 Chrome Plated Rod is a function of how it’s made. Here is how a world-class rod is produced:

-Steel Bar Selection

Sourcing AISI 1045/C45 billets from reputable mills, ensuring chemical purity and metallurgical consistency.

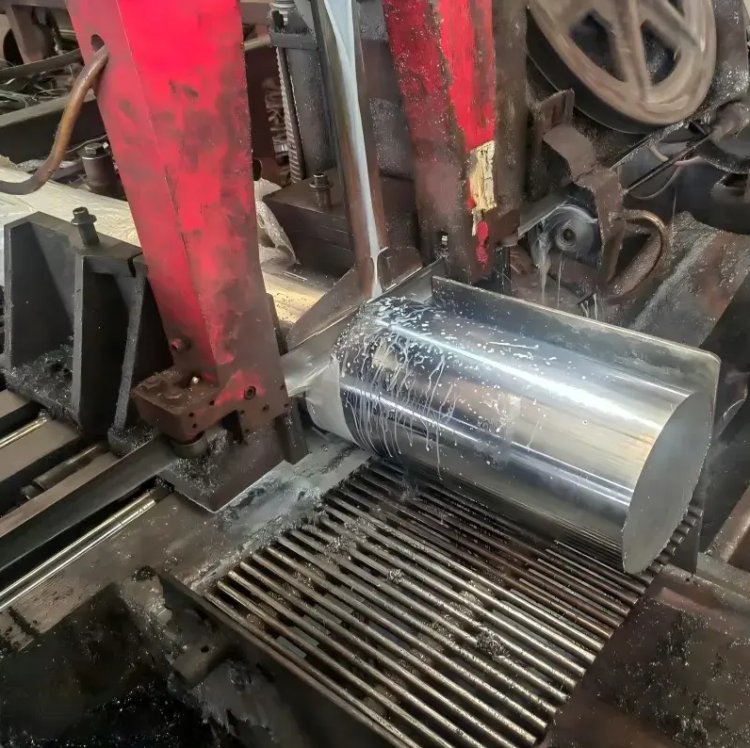

-Cutting and Straightening

Bars are cut to length and straightened to tight tolerances before finishing.

-Centerless Grinding

Precision grinding ensures exact diameter and roundness, preparing for a flawless plated surface.

-Polishing

Polished to a high-gloss, mirror finish for optimal plating adhesion and surface integrity.

-Chrome Plating (Electroplating)

Rods are cleaned, submerged in chrome plating tanks, and coated to the required thickness (typically 20–30 µm).

-Post-Plating Inspection

Each rod is checked for: diameter, straightness, roundness, surface roughness, chrome hardness, and plating adhesion.

-Packaging

Finished rods are oiled, bagged or wrapped, and crated or bundled for corrosion-free shipping.

6. Real-World Applications of 1045 Chrome Plated Rods

The 1045 Chrome Plated Rod can be found at work in nearly every segment of industry:

a) Construction Machinery

• Excavators, loaders, bulldozers, cranes—hydraulic cylinders rely on chrome-plated rods for smooth, powerful action.

b) Industrial Equipment

• Presses, injection molding machines, forming tools, automated assembly robots—all use precision rods in their actuators.

c) Agriculture and Forestry

• Cylinders for plows, harvesters, balers, and forestry equipment.

d) Mining and Quarrying

• Equipment faces dust, shock, and dirt—rust-resistant, wear-hardened rods are a must.

e) Marine and Offshore

• Deck equipment, loading arms, and steering mechanisms all depend on corrosion-resistant rods.

f) Automotive Manufacturing

• Robotic arms and test benches in production lines.

g) Special Machines

• Elevator/lift pistons, amusement rides, packaging lines.

In all these applications, 1045 chrome plated rods deliver reliability at the heart of the motion.

7. Choosing the Right 1045 Chrome Plated Rod for Your Needs

With so many sizes, options, and specifications, how do you make the best choice for your hydraulic cylinder?

a) Diameter and Length

• Select rod diameter according to cylinder bore, pressure ratings, and stroke length.
• For long strokes, ensure sufficient core strength to resist flex and buckling.

b) Tolerances

• Check manufacturer’s seal recommendations—order rods with matching (f7 or h8) tolerance.

c) Chrome Layer Thickness

• For normal industrial use, 20–30 µm is typical.
• Heavier wear/abrasion? Specify up to 50 µm.

d) End Machining

• Pre-machined threads, cross-bores, pins, or special connectors can be factory-supplied for reduced lead times.

e) Corrosion Protection

• Marine, chemical, or outdoor exposure demands thicker chrome, a nickel underlayer, or solid stainless for the most critical cases.

f) Supplier Quality

• Only source from proven manufacturers (like Shandong Baokun Metal Material Co. Ltd) offering full batch traceability, quality certification, and after-sales support.

8. Shandong Baokun Metal Material Co. Ltd: Your Trusted Rod Supplier

With decades of experience, Shandong Baokun Metal Material Co. Ltd is trusted by engineers and OEMs worldwide for the supply of premium 1045 chrome plated rods.

Why Choose Us?

• Full customization: Diameters 6–200 mm, custom lengths up to 8m or more, and all end machining available.
• Strict quality control: ISO-certified, every rod fully inspected and certified.
• Prompt delivery: Stock in standard sizes and quick turnarounds for special orders.
• Engineering expertise: Consultation for rod size selection, application matching, and troubleshooting.
• World-class packaging: All rods supplied corrosion-free and ready for immediate use.
• Global reach: Serving Europe, Americas, Asia, and Oceania—on time, every time.

In hydraulic cylinder engineering, every detail matters—but nowhere more than in the choice of the piston rod. The 1045 Chrome Plated Rod is generations-proven for delivering the perfect mix of strength, surface hardness, wear-resistance, cost control, and reliability needed for almost every industrial environment.

Frequently Asked Questions (FAQ)

Q1: How long can a 1045 chrome plated rod last in standard hydraulic use?

A: With normal operation, correct specification, and regular maintenance, these rods can last for many years—often exceeding 10,000+ hours—before requiring replacement.

Q2: What are common alternatives to 1045 Chrome Plated Rods?

A: For higher stress, 4140 or 42CrMo4 alloy rods are used. For maximum corrosion, 316/304 stainless rods may be chosen, though at much higher cost. Induction-hardened rods suit ultra-heavy demands, but 1045 suits the largest range of industrial needs.

Q3: How should I store spare chrome plated rods?

A: Always keep rods indoors, oiled, and covered. Avoid moisture, stacking that leads to bending, and contact with corrosives. Store horizontally with full support.

Q4: Can chrome plated rods be remanufactured or re-chromed?

A: Yes. Worn rods can often be ground and re-plated—if the core is undamaged. Economic viability depends on rod size and local chrome plating availability.

Q5: What about food-grade or medical applications?

A: Standard 1045 chrome rods aren’t usually suitable for direct food or medical contact. Use special stainless or FDA/EC-approved rods for such uses.

Q6: Is the chrome plating environmentally safe?

A: Chrome plating is heavily regulated for safety; reputable suppliers use closed-system, environmentally-compliant facilities to meet health and environmental laws.

Q7: Can I order rods with pre-machined threaded ends?

A: Absolutely. Most suppliers, including Shandong Baokun Metal Material Co. Ltd, can deliver rods ready to assemble, fully machined to your print or standard catalog features.

Q8: How does the chrome thickness impact wear and corrosion?

A: Thicker chrome layers extend both wear and corrosion resistance, but excessive thickness can cause flaking. Always specify thickness based on your real on-site demands.
