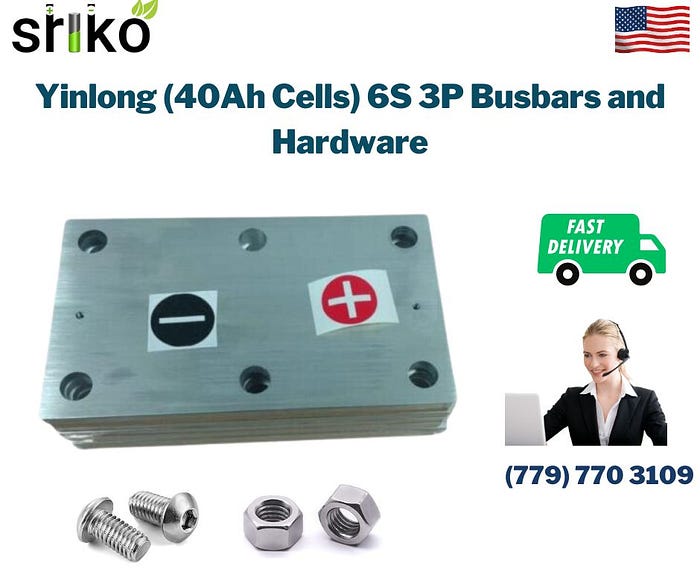

Yinlong (40Ah Cells) 6S 3P Busbars and Hardware

When setting up a Yinlong 40Ah cell battery pack in a 6S3P configuration, selecting the right busbars and hardware is crucial for safe, efficient performance. In this configuration, six cells are connected in series (6S) to increase the pack’s voltage, and three parallel strings (3P) provide an enhanced capacity of 120Ah. This setup suits applications that require both high energy density and durability, such as electric vehicle (EV) battery packs, off-grid solar storage, and high-power tools.

For busbars, copper or aluminum is recommended due to its high conductivity, which minimizes power losses and resists overheating. To accommodate the higher current flow in a 6S3P layout, use wider, thicker busbars that can handle the increased amperage without overheating or causing significant voltage drops. Plated or insulated busbars can add protection against corrosion and enhance the longevity of your setup, especially in challenging environments.

Reliable hardware — like high-quality bolts, washers, and spacers — helps secure connections under thermal and mechanical stress. Stainless steel bolts with proper torque settings maintain stability and reduce the risk of loosening over time. Proper insulation is essential to prevent short circuits and enhance safety. Using the right busbars and hardware boosts the performance, safety, and durability of your Yinlong 6S3P battery pack across various high-demand applications.
