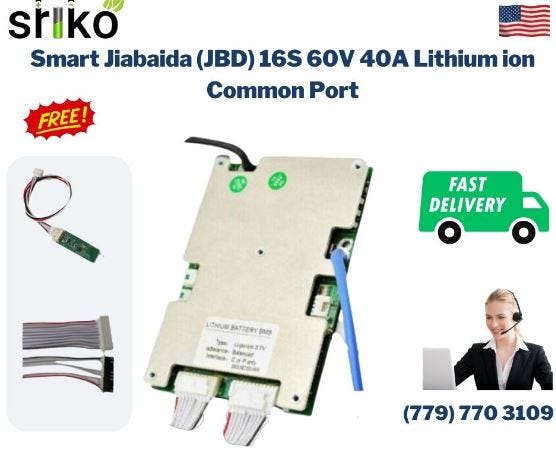

Smart Jiabaida (JBD) 16S 60V 40A Lithium ion Common Port Battery protection module.

The Smart Jiabaida (JBD) 16S 60V 40A lithium-ion battery protection module is designed for higher voltage applications, suitable for 16-series lithium-ion packs. Here are its key features:

1. Configuration: Supports a 16S setup, which provides a nominal voltage of 60V, ideal for various electric vehicle and energy storage applications.
2. Current Rating: Handles a continuous discharge current of up to 40A, accommodating higher power demands.
3. Cell Balancing: Ensures even charging and discharging of all cells, which enhances overall battery performance and lifespan.
4. Overcharge Protection: Prevents the voltage of any individual cell from exceeding safe limits during charging.
5. Over-discharge Protection: Protects against discharging cells below their minimum safe voltage, which can lead to damage.
6. Overcurrent Protection: Automatically disconnects the load if the current exceeds 40A, safeguarding both the battery and connected devices.
7. Short Circuit Protection: Activates immediately to cut off power in the event of a short circuit, reducing risks of fire or damage.
8. Temperature Monitoring: May include temperature sensors to monitor battery temperature and provide protection if it exceeds safe operating limits.
9. Communication Interface: Often features a communication port (like UART or CAN) for monitoring and configuration via external devices.
10. LED Indicators: Typically includes status LEDs to indicate charging, discharging, and fault conditions.
11. Compact and Durable Design: Designed for easy integration into battery packs while maintaining robustness for various applications.

When using this module, ensure it is compatible with your battery chemistry and configuration, and follow proper installation guidelines for optimal performance and safety.
