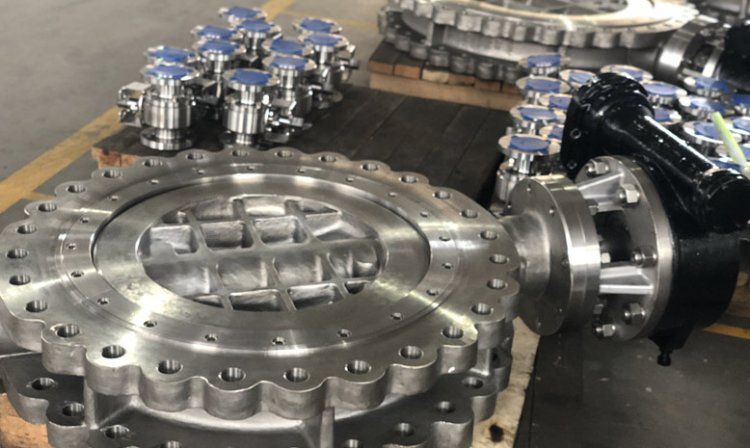

Monel Butterfly Valve

Valves Only is leading Monel Butterfly Valve Manufacturers in USA offers a full range of high-quality valves for all applications. The valves are highly resistant to corrosion and are therefore well suited to use in harsh operating conditions of different industries. With their focus on the supply of rugged, efficient, and reliable valves, Valves Only has become the best choice as a reliable supplier to businesses of different industries.



Key Features of a Monel Butterfly Valve

  1. Body: A Monel butterfly valve's body is made up of Monel, making it resistant to corrosion and strong.

  1. Disc: The disc is the variable part of the valve that regulates the flow. It also comprises Monel for achieving durability and effectiveness.

  1. Stem: Stem connects disc with actuator. Stem is very critical in transferring the rotation from actuator to disc.

  1. Seat: Seat is the one that encircles the valve such that no fluid leakage is possible when the valve is closed.

  1. Actuator: Actuator can be manual, electric, or pneumatic, and actuator turns the disc in a bid to regulate the flow.



Working Mechanism

Monel butterfly valve operates by turning its disc to 90 degrees to regulate the flow of the medium. When the actuator is turned on, the disc along its axis closes or opens the valve. The pipe and the disc are parallel to one another when fully open in order to achieve the best flow. The disc blocks the pipe on closing in order to cut off the flow entirely. It is because of the use of Monel material that it becomes operational under adverse conditions as well.



Advantage of Monel Butterfly Valve

  1. Corrosion Resistance: Since Monel is nickel copper alloy, it possess great corrosion resistance, particularly in harsh environment, i.e., chemical rich or sea water environment.

  1. Long Term Functionality: Monel butterfly valves are engineered for long term performance with proper longevity and reliability.

  1. Small Structure: Monel butterfly valve are lightweight and occupy less space in comparison to other valve, hence easy to install where installation space is an issue.

  1. Cost Effective: Even though Monel butterfly valve are made of high quality material, they are comparatively less expensive than other corrosion resistant valve.

  1. Easy to Operate: The minimal level of intricacy of butterfly valve design make it easy to operate and maintain, lowering downtime and optimizing efficiency in entire system.



Industries

  • Chemical Processing: For application in the handling of aggressive chemicals and acids.

  • Marine Industry: For saltwater use.

  • Oil & Gas: In high-temperature and corrosive substance-exposed uses.

  • Water Treatment: For chemically treated or saline water treatment.

  • Pulp & Paper: Where chemical resistance is paramount.



Types

1) Wafer-Type Butterfly Valve

2 )Lug-Type Butterfly Valve

3) Double Offset Butterfly Valve

4) Triple Offset Butterfly Valve



Description

  • Body material- Monel400(UNS N04400), Monel 403, Monel 404(UNS N04404), Monel R-45(UNS N04405), Monel 406, Monel 411

  • Size – 2” – 48”

  • Class: 150 to 300; PN 6 – PN 25

  • Ends: Wafer, flanged, lug

  • Operations: Lever-operated, gear-operated, pneumatic actuated, and electric actuated.



Conclusion

In short, Monel butterfly valves are a critical component for the location where high corrosion resistance and reliability are needed. Only Valves as a top Monel Butterfly Valve Manufacturers in USA ensures world-class products specifically tailored to your very own specifications. Choose us for your next project, and enjoy the benefits of enhanced engineering, higher quality, and customized customer service.
